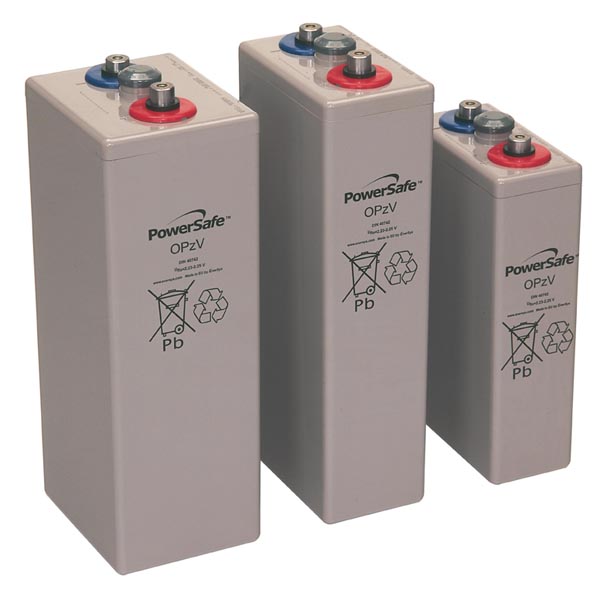

Engineered with an optimized plate design, EnerSys PowerSafe OPzV valve regulated lead acid batteries have an increased capacity that exceeds the DIN standard. Additionally, the die cast tubular plate design offers excellent cycling with a proven long life under float conditions. The pasted negative flat plate design provides the perfect balance for maximum performance.
The robust design and use of a gel suspended electrolyte makes them virtually maintenance free. They have a wide range of capacity; feature die cast tubular positive plates, special micro porous separator materials, a pressure relief valve and color coded terminals.
EnerSys PowerSafe OPzV Specifications
- Capacity from 215 to 3170 Ah
- 20 year service life at 20 degrees C
- Very low maintenance, no water addition
- Easy installation in vertical or horizontal position
- Terminals – lead alloy leak-proof pole with brass insert designed to give minimum resistance and maximum current flow
- Fully insulated, solid copper inter-cell connectors allow for voltage measurements
- Compliant with both IEC 60896-11 and DIN 40736-1
- Lead-calcium alloy
- Exceeds DIN standards for performance
- Immobilized sulfuric acid electrolyte
- Tubular positive lead-calcium alloy grid
- Negative flat plate with lead-calcium grid
- Flame retardant Acrylonitrile Butadiene Styrene (ABS) jar and cover
- Color coded terminals for easy polarity recognition
- Low resistance microporous separator material
- Pressure Relief Valve (PRV) with integral flame arrestor Installation and Operation
- Efficient footprint
- Excellent deep discharge recovery and cyclability
- Optional racking offers easy installation
- Operating temperature: -4°F (20°C) to 140°F (60°C)
- Recommended temperature: 68°F (20°C) to 86°F (30°C)
- IEC 60896-21 and 60896-22
- DIN 40742
EnerSys PowerSafe OPzV Spec Sheet
