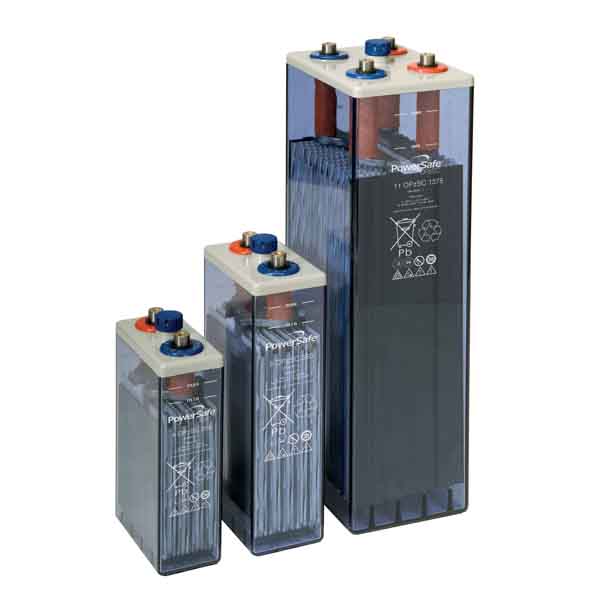

EnerSys PowerSafe OPzS

Engineered with an optimized plate design, EnerSys PowerSafe OPzS batteries feature an increased capacity exceeding the DIN standard. Additionally, the die cast tubular plate design with low antimony offers excellent cycling capabilities and a proven long life under float conditions. The pasted negative flat plate design provides the perfect balance for maximum performance.

The robust design of PowerSafe OPzS batteries makes them a perfect fit for your application. They have a wide range of capacity; feature die cast tubular positive plates, special micro porous separator materials and can be ordered with special vent caps which do not have to be removed for topping electrolyte levels or specific gravity measurements.

EnerSys PowerSafe OPzS Features

• Capacity from 217 to 3543 Ah
• 20 year service life at 20 degrees C
• 3 year topping interval
• Low maintenance
• Terminals – lead alloy leak-proof pole with brass insert designed to give minimum resistance and maximum current flow
• Fully insulated, solid copper inter-cell connectors allow for voltage measurements
• Compliant with both IEC 60896-11 and DIN 40736-1
• Low antimony lead alloy
• Single cell design for easy maintenance 3 year watering interval
• Brass inserted posts for high rate performance
• Transparent containers for electrolyte level verification
• Color coded terminals for easy polarity recognition
• Die-cast tubular positive grids with low antimony lead for longer life
• Pasted negative flat plates for maximum performance
• Unique microporous material separators
• Molded durable transparent Styrene Acrylonitrile jar (SAN) and Acrylonitrile Butadiene Styrene (ABS) cover
• Dilute sulfuric acid electrolyte with specific gravity of 1.240
• Lead alloy leak proof terminal and fully insulated solid copper inter-cell connectors
• Safety vent plugs equipped with flame arrestors, standard
• Efficient footprint
• Designed to be rack mounted
• Operating temperature: 32°F (0°C) to 104°F (40°C)
• Recommended temperature: 68°F (20°C) to 86°F (30°C)
• Compliant with DIN 40736-1
• Compliant with IEC 60896-11

EnerSys PowerSafe OPzS Spec Sheet
