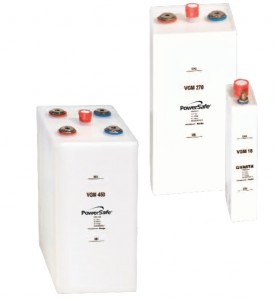

The pocket plate design, combined with the Nickel-cadmium (NiCd) chemistry and valve regulated technology, places the EnerSys PowerSafe VGM Ni-Cd Batteries in the lead with low maintenance batteries. The Ni-Cd chemistry provides exceptionally long life at extreme temperatures while the inherent extremely low maintenance feature is enhanced by the valve regulated design, making the Ni-Cd series of batteries an ideal choice for mixed load applications.
The robust design provides an excellent resistance against electrical and mechanical stress, low risk of terminal degradation and a proven 20 plus year life. This combination along with proven use in service make the EnerSys PowerSafe VGM Ni-Cd Batteries the right choice for industrial applications, proven reliability and the highest safety integrity. The PowerSafe VGM battery series covers discharges of 30 to 120 minutes.
EnerSys PowerSafe VGM Ni-Cd Batteries Features and Benefits
- Capacity range 11-1350Ah
- Single one piece container construction
- Ni-Cd pocket plate design
- Long storage and shelf life
- Wide operating temperature
- Low risk of terminal degradation
- Translucent plastic case for visible electrolyte level verification
- Proven 20 plus year service life
Construction
- Robust construction means low risk of terminal degradation
- Plate lugs are connected to post by bolting or welding
- Dilute potassium hydroxide electrolyte
- Felt separators insulate plates and improve recombination rates
- Dual post seal design minimizes carbon formation
- Single one piece container construction
- Flame arresting low Pressure Relief Valve (PRV)
Installation and Operation
- Extremely low watering requirements over normal service lifetime
- Low maintenance technology with recombination rates up to 90%
- Cells can be stored for long durations without damage
- Translucent case allows for electrolyte level verification
- Proven long service life with 20 years in stationary cycling operations
- Operating temperature: -22ºF (-30ºC) to 122ºF (50ºC)
- Recommended temperature: 32ºF (0ºC) to 104ºF (40ºC)
EnerSys PowerSafe VGM Ni-Cd Batteries Models
Cell types available in the EnerSys PowerSafe VGM Ni-Cd Battery Series (number indicates AH Capacity).
VGM11
VGM18
VGM24
VGM30
VGM40
VGM48
VGM55
VGM65
VGM75
VGM90
VGM110
VGM125
VGM140
VGM160
VGM185
VGM205
VGM225
VGM250
VGM270
VGM300
VGM320
VGM340
VGM355
VGM380
VGM400
VGM450
VGM470
VGM500
VGM520
VGM550
VGM570
VGM600
VGM630
VGM675
VGM690
VGM750
VGM770
VGM800
VGM850
VGM950
VGM1000
VGM1030
VGM1130
VGM1250
VGM1350
