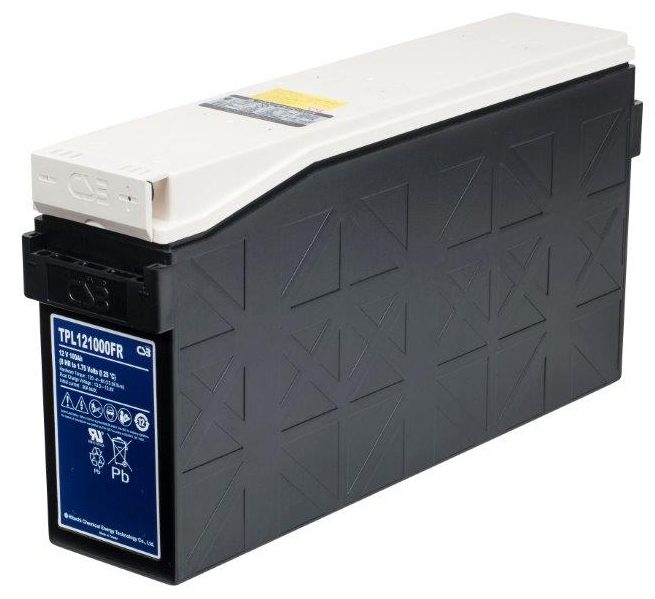

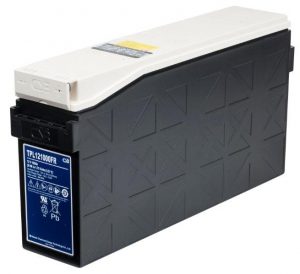

The CSB Battery TPL121000 is a front terminal battery that offers up to 12 years of expected life under normal float charge. The TPL Series of batteries all are rechargeable, highly efficient, leak proof and maintenance free. This VRLA Battery offers Absorbent Glass Mat (AGM) technology that boasts efficient gas recombination of up to 99%.
CSB Battery TPL121000 Specifications
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 100Ah @ 8hr-rate to 1.75V per cell @ 77°F |
| Weight | Approx. 84.41 lbs |
| Maximum Discharge current | 800A (5 sec) |
| Internal Resistance | Approx. 3.70 mΩ |
| Operating Temperature Range | Discharge：5°F~122°F Charge：5°F~104°F Storage：5°F~104°F |
| Nominal Operating Temperature Range | 77°F±5°F |
| Float charging voltage | 13.5 ~ 13.8 VDC/Unit Average at 77°F |
| Recommended Maximum Charging current limit | 30A |
| Self Discharge | Less than 10% after 90 days, can be stored up to 6 months at 77°F |
| Terminal | I2 thread lead alloy terminal to accept M6 bolt |
| Container Material | Flame Retardant ABS (UL 94-V0) |
For more in-depth information, see the data sheet.
