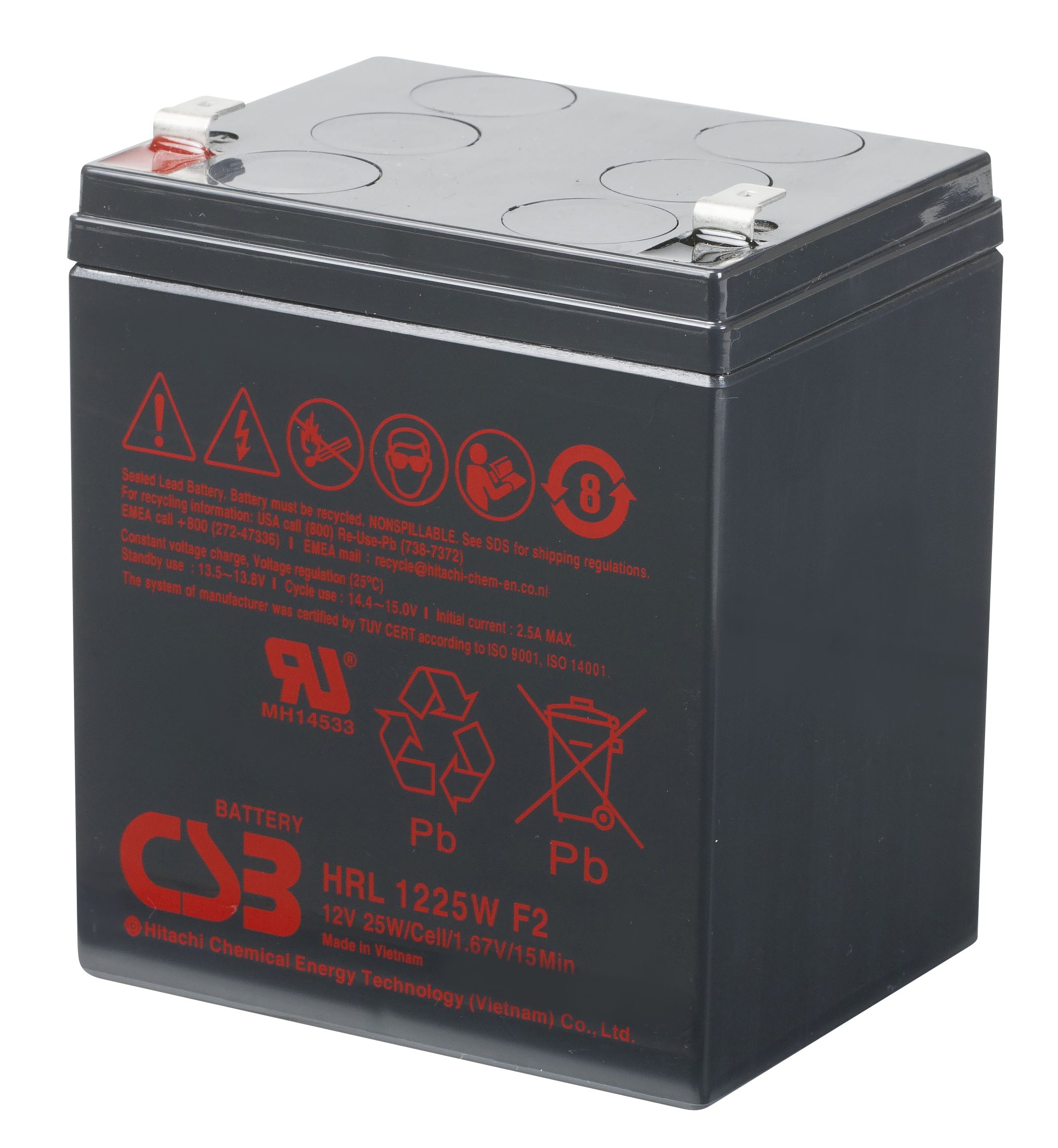

CSB Battery HRL1225W

The CSB Battery HRL1225W is specially designed for high efficient discharge and long life. The HRL is a lightweight VRLA battery with a small footprint that provides high discharge efficiency. It can be used up to 8 years in standby service.  Absorbent Glass Mat (AGM) technology provides for efficient gas recombination of up to 99%.

CSB Battery HRL1225W Specifications

Cells Per Unit6
Voltage Per Unit12 V
Capacity25W @15 minute-rate to 1.67V per cell @77°F
WeightApprox. 4.30 lbs
Maximum Discharge Current130A (5 Sec)
Internal Resistance Approx.Approx. 19.6 mΩ
Operating Temperature RangeDischarge:5°F~122°F
Charge:5°F~104°F
Storage:5°F~104°F
Nominal Operating Temperature Range77°F±5°F
Float Charging Voltage13.5 to 13.8 VDC/unit Average at 77°F
Recommended Maximum Charging Current Limit2.5A
Equalization and Cycle Service14.4 to 15.0 VDC/Unit Average at 77°F
Self DischargeMore than 75% of the pre-storage capacity if stocked for less than 6 months at ambient temp. 77°F
TerminalF2-Faston Tab 250
Container MaterialABS(UL94-HB) & Flammability resistance of (UL94-V0) can be available upon request.

For more in-depth information, see the data sheet.
