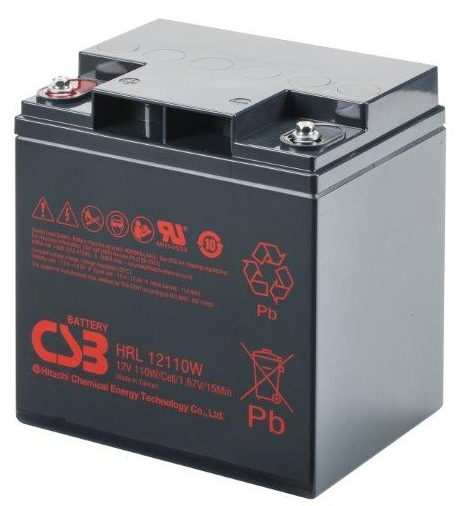

The CSB Battery HRL12110W is specially designed for high efficient discharge and long life. The HRL is a lightweight VRLA battery with a small footprint that provides high discharge efficiency. It can be used up to 8 years in standby service. Absorbent Glass Mat (AGM) technology provides for efficient gas recombination of up to 99%.
CSB Battery HRL12110W Specifications
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 110@15 minute-rate to 1.67V per cell @77°F |
| Weight | Approx. 21.82 lbs |
| Maximum Discharge Current | 225A (5sec) |
| Internal Resistance Approx. | Approx. 8.1mΩ |
| Operating Temperature Range | Discharge：5°F~122°F Charge：5°F~104°F Storage：5°F~104°F |
| Nominal Operating Temperature Range | 77°F±5°F |
| Float Charging Voltage | 13.5 to 13.8 VDC/unit Average at 77°F |
| Recommended Maximum Charging Current Limit | 11A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/Unit Average at 77°F |
| Self Discharge | More than 75% of the pre-storage capacity if stocked for less than 6 months at ambient temp. 77°F |
| Terminal | I1-Thread lead alloy recessed terminal to accept M5 bolt |
| Container Material | ABS(UL94-HB) & Flammability resistance of (UL94-V0) can be available upon request. |
For more in-depth information, see the data sheet.
For more information about the CSB Battery HRL Series,
call 86 21 5859 8677 or email sales@alphaenertech.com.
