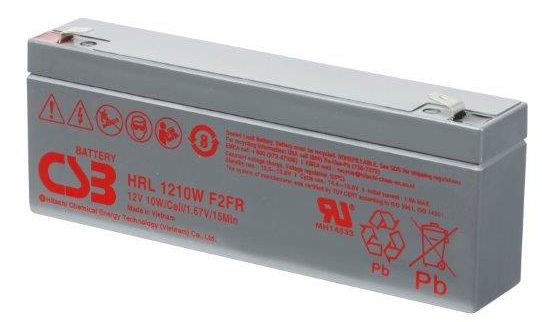

The CSB Battery HRL1210W is specially designed for high efficient discharge and long life. The HRL is a lightweight VRLA battery with a small footprint that provides high discharge efficiency. It can be used up to 8 years in standby service. Absorbent Glass Mat (AGM) technology provides for efficient gas recombination of up to 99%.
CSB Battery HRL1210W Specifications
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 10W @ 15 Minute-Rate to 1.67V Per Cell @ 77°F |
| Weight | Approx. 2.42 lbs |
| Maximum Discharge Current | 40A (5 Sec) |
| Internal Resistance Approx. | Approx. 32.1 mΩ |
| Operating Temperature Range | Discharge：5°F~122°F Charge：5°F~104°F Storage：5°F~104°F |
| Nominal Operating Temperature Range | 77°F±5°F |
| Float Charging Voltage | 13.5 to 13.8 VDC/Unit Average at 77°F |
| Recommended Maximum Charging Current Limit | 1.0A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/Unit Average at 77°F |
| Self Discharge | More than 75% of the pre-storage capacity if stocked for less than 6 months at ambient temp. 77°F |
| Terminal | F2-Faston Tab 250 |
| Container Material | ABS(UL94-HB) & Flammability resistance of (UL94-V0) can be available upon request. |
For more in-depth information, see the data sheet.
