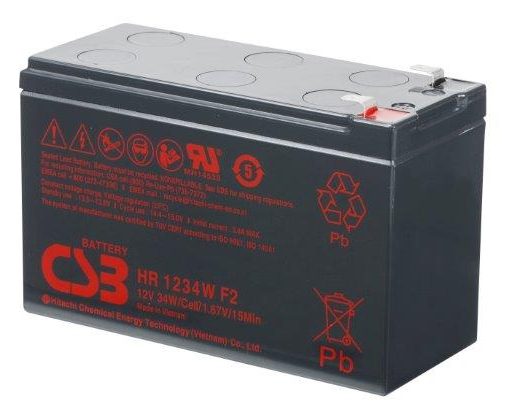

The CSB Battery HR1234W, is specially designed for efficiency in high discharge applications. The HR Series of VRLA batteries boasts a small footprint and light weight. It can be used for up to 5 years in standby service. The HR Series is maintenance-free and offers Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
CSB Battery HR1234W Specifications
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 34W @ 15 minute-rate to 1.67V per cell @ 77°F |
| Weight | Approx. 5.51lbs |
| Maximum Discharge current | 100/130A (5 sec.) |
| Internal Resistance Approx. | Approx. 19mΩ |
| Operating Temperature Range | Discharge: 5°F~122°F Charge: 5°F~104°F Storage: 5°F~104°F |
| Nominal Operating Temperature Range | 77°F ± 5°F |
| Float charging voltage | 13.5 to 13.8 VDC/unit Average at 77°F |
| Recommended Maximum Charging current limit | 3.4A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 77°F |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 77°F |
| Terminal | F2-Faston Tab250 |
| Container Material | ABS (UL94-HB) & Flammability resistance of (UL94-V0) can be available upon request |
For more in-depth information, see the data sheet.
For more information about the CSB Battery HR Series,
call 86 21 5859 8677 or email sales@alphaenertech.com.
