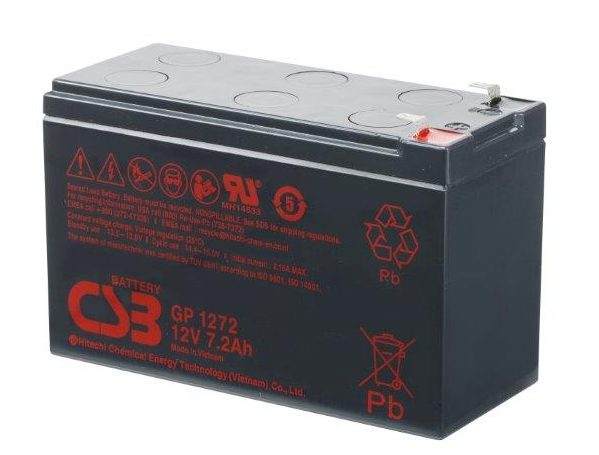

CSB Battery GP1272 is a general purpose, maintenance-free sealed lead acid battery that offers up to 5 years in standby service. As with all CSB batteries, it is rechargeable, highly efficient, leak proof and maintenance free. The GP1272 offers Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
CSB Battery GP1272 Specifications
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 7.2 Ah @ 20hr-rate to 1.75V per cell @ 77°F |
| Weight | Approx. 5.29 lbs |
| Maximum Discharge current (A) | 100A/130A (5 sec) |
| Internal Resistance Approx. | Approx. 23mΩ |
| Operating Temperature Range | Discharge：5°F~122°F Charge：5°F~104°F Storage：5°F~104°F |
| Nominal Operating Temperature Range | 77°F ± 5°F |
| Float charging voltage | 13.5 to 13.8 VDC/unit Average at 77°F |
| Recommended Maximum Charging current limit | 2.16A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 77°F |
| Self Discharge | More than 75% of the pre-storage capacity if stocked for less than 6 months at ambient temp. 77°F |
| Terminal | F1/F2-Faston Tab187/250 |
| Container Material | ABS(UL94-HB) & Flammability resistance of (UL94-V0) can be available upon request. |
For more in-depth information, see the data sheet.
For more information about the CSB Battery GP Series,
call 86 21 5859 8677 or email sales@alphaenertech.com.
