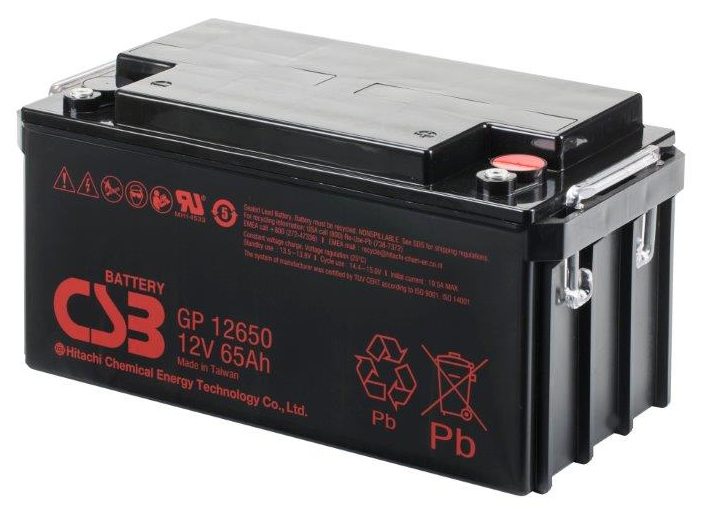

CSB Battery GP12650

CSB Battery GP12650CSB Battery GP12650 is a general purpose, maintenance-free sealed lead acid battery that offers up to 5 years in standby service. As with all CSB batteries, it is rechargeable, highly efficient, leak proof and maintenance free.  The GP12650 offers Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

CSB Battery GP12650 Specifications

Cells Per Unit6
Voltage Per Unit12 V
Capacity65 Ah @ 20hr-rate to 1.75V per cell @ 77°F
WeightApprox. 44.08 lbs
Maximum Discharge current (A)500A (5 sec.)
Internal Resistance Approx.Approx. 5.8 mΩ
Operating Temperature RangeDischarge:5°F~122°F
Charge:5°F~104°F
Storage:5°F~104°F
Nominal Operating Temperature Range77°F ± 5°F
Float charging voltage13.5 to 13.8 VDC/unit Average at 77°F
Recommended Maximum Charging current limit19.5A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 77°F
Self DischargeMore than 75% of the pre-storage capacity if stocked for less than 6 months at ambient temp. 77°F
TerminalB4-L terminal or Recessed Type to accept M6 nut & bolt
Container MaterialPolypropylene (UL 94-HB) & Flammability resistance
of (UL 94-V0) can be available upon request.

For more in-depth information, see the data sheet.
