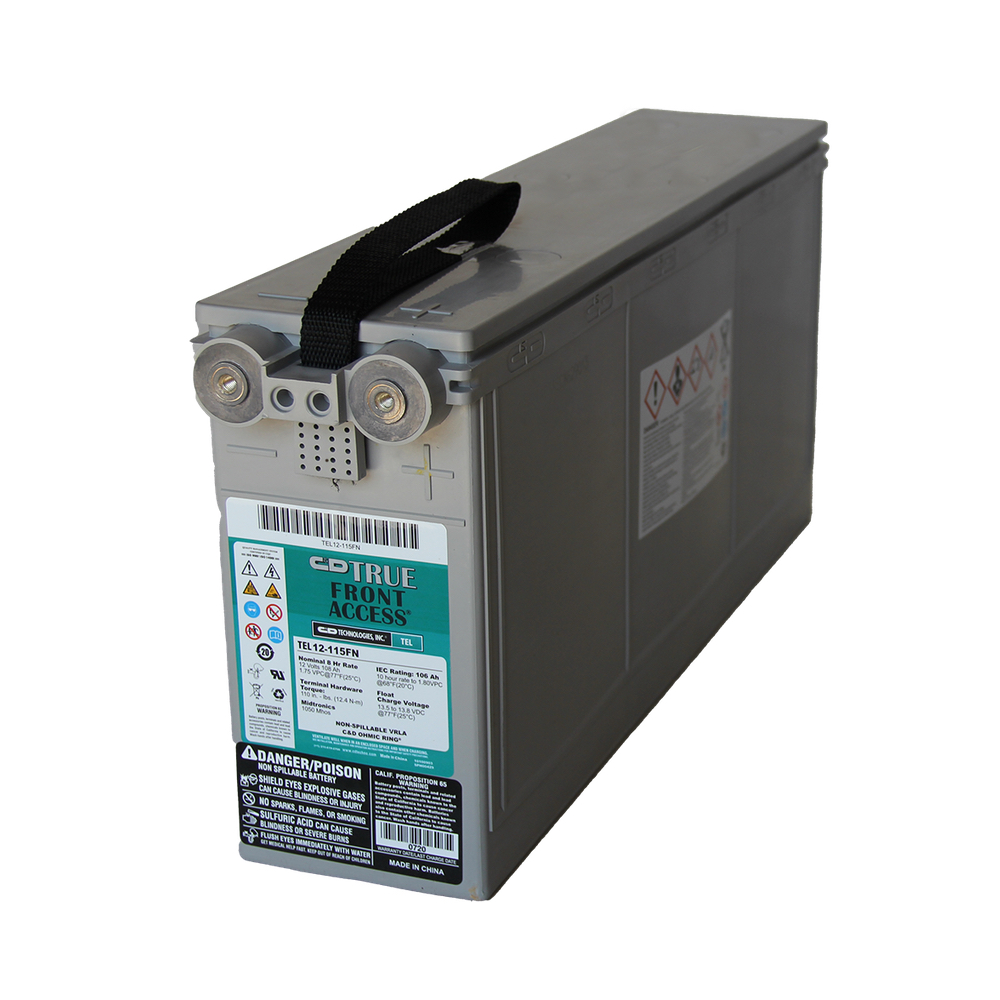

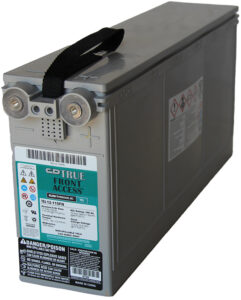

C&D TEL 12-115FN

The C&D TEL 12-115FN, True Front Access (TFA) batteries incorporate all of the same technology found in the proven TEL series Long Duration batteries, but are packaged in C&D’s unique, patented True Front Access container. C&D’s True Front Access design provides a direct welded connection to the terminals for improved performance, reliability, and less maintenance. This terminal also features the C&D Ohmic ring which provides the most reliable testing location for technicians.

In critical telecom applications, maximum battery life is essential. Dynasty long duration batteries deliver this while complying with rigorous industry standards. Computer modeling, stringent components materials selection and design criteria as well as state-of-the-art automated manufacturing are all validated through extensive life-cycle testing and years of in-service life in telecommunications and uninterruptible power systems applications.

The TEL 12-115FN is an ideal replacement for C&D TEL12-105FS.

C&D TEL 12-115FN Features

• TAA Compliant
• Flame-arresting one-way pressure-relief vent for safety and long life.
• Thermally welded case-to-cover bond to ensure a leak proof seal.
• Flame-retardant polypropylene case and cover compliant with UL94 V-0 with a Limiting Oxygen Index of greater than 28.
• Absorbent Glass Mat (AGM) technology for efficient gas recombination of 99% plus.
• Thick positive plate design for maximum service float life – 10 year design life.
• Front accessible threaded copper alloy terminals for ease of assembly and reduced maintenance.
• Complies with UL1778, 924, 1989 and 94 V-0 and major global specifications.
• UL-recognized component.
• Can be used in any orientation. Upright, side or end mounting recommended.

C&D TEL 12-115FN Specifications

Number of Cells: 6
Nominal Voltage: 12
Weight: 73 lbs.
Dimensions (in.): 4.3 W x 9.1 H 20.1 L
Rate: 108 Ah @8 hour rate to 1.75 volts per cell @ 77ºF
Operating Temperature Range Discharge: -40ºF to 160ºF
Charge: -10ºF to 140ºF (with temperature compensation)
Nominal Operating Temperature Range: 74ºF to 80ºF
Float Charging Voltage: 13.5 to 13.8 VDC/unit Average @ 77ºF

For more in-depth specifications, see the data sheet.
