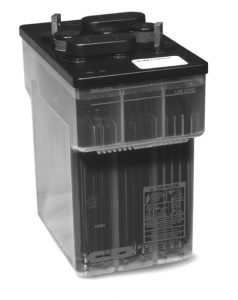

C&D XDJ Lead Calcium Battery

The C&D XDJ Lead Calcium Battery capacities range from 0.355 to 0.650 Kilowatts per cell and are ideal for UPS applications.

C&D XDJ Lead Calcium Battery Features

• Time-tested epoxy post seal, and reliable, tongue and groove jar-to-cover seal designs provide increased adhesive coverage area which offers unprecedented seal integrity during service
• Top suspended positive plate design allows free downward growth without pressure on jar, cover, or post seal, extending reliability and product life
• Recessed vent area to collect water and acid spills, keeping them away from posts and cover, lowering maintenance and clean-up costs
• U-wrapped separator design extends cycle life, improving product reliability
• High impact resistant jar material (UL94V-0; ASTM D-635 self-extinguishing, LOI >32) provides added protection
• Snap-on intercell connector covers protect against objects and electrical shorts — preventing hazardous situations
• Low evaporation, flame arrester vents protect against external source from igniting hydrogen gas within the cells improving safety
• Unique jar design facilitates installation
• Compact, optimized product size nets up to 40% floor space reduction saving valuable space
• Angled posts use standard lead-plated copper connectors and improved post to connector contact lowering resistance and allowing for quicker installation
• C&D capacity tests every XDJ battery to 100% of published rating which ensures 100% capacity out-of-the-box (no need to field cycle the batteries to reach rated capacity)
• 3-year full, 17-year pro-rata
• The new 20-year design life XDJ batteries incorporate these benefits in a transparent container for visual inspection of plates and individual cell voltage taps on the connector covers for cell voltage readings

Models

Below is a sampling of our more popular C&D XDJ Lead Calcium Batteries.
C&D 3XDJ-7
C&D 3XDJ-9
C&D 3XDJ-11
C&D 2XDJ-7
C&D 2XDJ-9
C&D 2XDJ-11
