btech-s5BTECH S5 Battery Monitoring and Validation Systems are designed specially for any battery system. BTECH’s impedance measurement technology is considered the reference method for stationary monitoring system ohmic testing. BTECH’s S5 system has the  sensitivity and high end filtering required to find failing cells in any application and USP/charger type. BTECH’s patented rate of change analysis finds bad units well before they pose a risk to your critical systems. BTECH’s S5 system uses fewer wires than any of our competitors. The wire set is  pre-designed, pre-terminated and tested which cuts installation time in half while increasing system reliability.

BTECH S5 Benefits

  • Monitors battery parameters in real time
  • Programmed cell impedance measurement up to 24/day
  • Programmable test & out-of-limits alarms
  • Battery discharge data logging
  • Supports up to 8 strings per system
  • Handles up to a total of 480 individual cells
  • Individual string current monitoring for multi-string systems
  • Complete electrical isolation from the battery string

BTECH S5 Specifications

  • Total Voltage – 0-600 VDC (Optionally Up To 1200 VDC as a Delta Configuration)
  • Total Number of Strings – 1-8 Strings
  • Unit Voltage – 1-16 VDC
  • Unit Impedance –  100µΩ to 20mΩ
  • Temperature (Unit & Ambient) – -32°F to 160°F
  • Discharge Events –
    • Date & Time stamp
    • System voltage
    • Load current
    • Power removed
  • Discharge Logging – Programmable
  • Connection Capacity –
    • Total # of connection points: 520
    • Total # of parallel strings: 8
  • Measurement Accuracy & Repeatability –
    • System Voltage: +/- 0.1% Full Scale
    • Unit Voltage: +/- 0.1% of Reading
    • Unilt Impedance: +/- 0.1 mΩ
    • Temperature: +/- 1.0 degrees F
  • Power Requirements – 110-225 VAC 50/60 Hz (UPS Protected Power) or 24-48 VDC
  • Enclosure

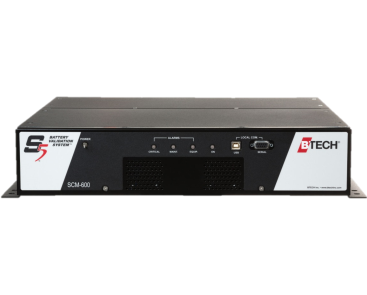

    • SCM-600 Controller: NEMA 1 Metal Rack/Wall Mount/Shelf Mount
    • VM24i Module: Voltage/temperature/Current Flame Retardant Poly
  • LED Indicators –
    • Green = No Alarms
    • Yellow = Maintenance Alarms
    • Red = Critical Alarms
    • Red Equipment = Module Not Communicating
    • Alternating Green = Performing Measurement
  • Software
    • BVM 4.x for Windows
    • BVM Observer 4.x
    • OS:  Windows Vista or above
  • CE Mark – Approved
