BTECH CellQ2

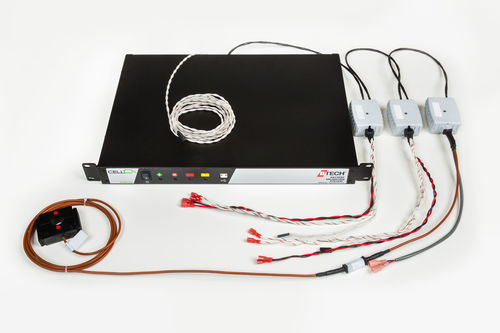

btech-cellq2The BTECH CellQ2 is a multi-location battery monitoring system designed for use in enterprise, government and industrial applications which rely on mission critical DC plants to ensure uninterrupted back up power to critical equipment. The CellQ2 is designed both for vented lead acid and valve regulated battery types. The CellQ2 system can monitor multiple UPS, Genset or switchgear battery systems with a single CellQ2 controller. The CellQ2 is ideally suited for applications that support remote telecommunications, UPS systems, station battery systems and switchgear. This system can monitor up to 8 parallel strings at a total of 480 volts. The CellQ2 can use VTz units or VM24i modules – depending on your system’s requirements.

BTECH CellQ2 Features

  • At-a-Glance R/Y/G LED display
  • 4 Configurable Locations
  • 8 Parallel Strings Per Location
  • 255 Monitoring Points with Impedance
  • 2, 4, 6, 8, 12 or 16 Volt Units
  • 2-480 Volt Systems
  • 1 Ambient Temperature
  • Voltage-only option

Communications:

  • Integrated Network Card (RJ-45 Port)
  • Unique MAC Address
  • Modbus over TCP/IP
  • SNMP Traps
  • (4) Form C Dry Contacts

Optional Features:

  • Dial-up Modem/GPRS
  • Modem/Wireless

Input Power:

  • 100-240 VAC, 50/60 Hz, Maximum 25W
  • 24-60 VDC, 10W Operating

Operating Temperature:

  • 41 to 104 °F / 5 to 40 °C

Mounting:

  • Side/Wall Mounting Bracket
  • 19″ Rack Mounting Brackets
  • 23″ Rack Mounting Brackets
  • Wall Mount Swing Out 19″ Rack
