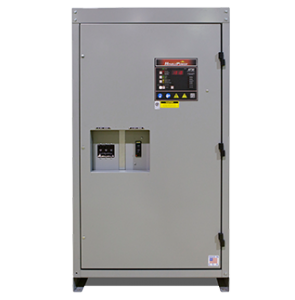

The HindlePower AT10 Series is the world’s easiest to operate float battery charger. It has over 20 years of proven reliability and has become the industry’s “gold standard ” for all stationary battery charging applications. We are so confident in our product that we have backed the AT10 with our unrivaled 5 Year Standard Warranty.
Combining the performance and accuracy of a microprocessor with the reliability of SCR power conversion technology makes the AT10.1 Series the standard in stationary battery chargers. AT10.1s are easy to install, operate and maintain. The AT10 is packed with the most standard features and best warranty in the industry.
Documentation: Spec Sheet / Brochure
HindlePower AT10 Series Applications
- Power Generation Substations
- Microwave Relay Sites
- Switchgear
- Emergency DC Power
- DC Operated Breakers
- Alarm Systems
- Uninterrupted Power Systems
- DC Control Systems
HindlePower AT10 Series Features and Benefits
- 5 Year Product Warranty
- Universal main control board operates in any AT Series charger
- Alarm assembly with local LEDs and summary relay contact for AC Failure, DC Failure, High Vdc, Low Vdc, Positive(+) and Negative(-) ground fault
- High DC voltage shutdown
- Forced load share during parallel operation
- Float/equalize selector switch with indicating lights
- Manual equalize timer (0-255 hr.) with indicating lights
- AC line failure automatic equalize timer (0-255 hr.) with indicating light
- AC On indicating light
- 1% Digital LED meter for Vdc, Adc, timer hours and alarm settings
- AC input and DC output circuit breakers
- Membrane front panel
- Front panel controls can be disabled for security
- A redundant analog circuit for LVDC alarm, independent of the microprocessor
- Redundant control loops for higher reliability
- Local or remote voltage sense with redundancy to protect against remote sense failure
- Self-diagnostics
- Input & output MOV surge suppressors
- Reverse polarity protection via free wheeling diodes
- CU-AL I/O compression lugs
- Switchboard wire, UL VW-1
- Enclosure pre-treated using a 5-stage iron phosphate process with baked epoxy powder coating in ANSI 61 gray
