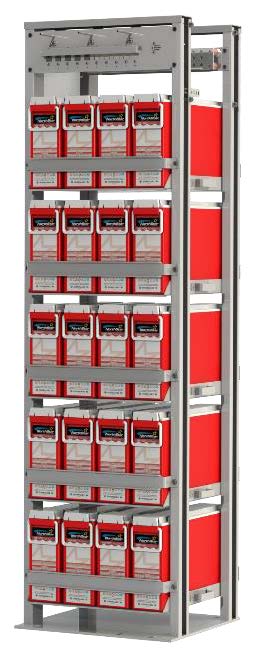

The NorthStar NSR0004 indoor racks are specially designed and engineered with quality and for durability, providing large power in small footprints. The NSR90004 is designed for front terminal batteries and configured for 24V Strings, 4 batteries per shelf and holds up to 5 shelves of NSB170FTs. The NSR9004 Racks are Seismic zone 2 certified per Telcordia GR-63-CORE and ideal for Telco applications.
NorthStar NSR0004 Features
- Weight excludes batteries
- Capacity based on NSB180FT Red Battery
- Holds up to 5 shelves of NSB180FT Red Battery
- Pre-drilled and masked-o grounding points
- NorthStar is registered to ISO 9001 & ISO 14001 standards
NorthStar NSR0004 Specifications
Height: 84 inches/2134 mm
Width: 24.3 inches/617 mm
Depth: 22 inches/559 mm
Weight: 350 lbs
Config: 24V
Cables/Shelf: 4
Breakers/Shelf: 0
Capacity Options 1800 Ah
For more information about NorthStar Battery Racks,
call 86 21 5859 8677 or email sales@alphaenertech.com.
