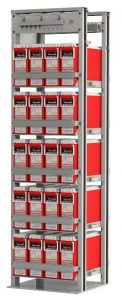

NorthStar NSR0001

The NorthStar NSR0001 indoor racks are specially designed and engineered with quality and for durability, providing large power in small footprints. The NSR0001 is designed for front terminal batteries and configured for 48V Strings, 4 batteries per shelf and holds up to 5 shelves of NSB170FTs.  They are Seismic zone 2 certified per Telcordia GR-63-CORE and ideal for Telco applications.

NorthStar NSR0001 Features

  • Weight excludes batteries
  • Capacity based on NSB180FT Red Battery
  • Holds up to 5 shelves of NSB180FT Red Battery
  • Bus bars accommodate standard 2 hole lugs
  • Pre-drilled and masked-o grounding points
  • 100 Amp breaker per string
  • NorthStar is registered to ISO 9001 & ISO 14001 standards

NorthStar NSR0001 Specifications

Height: 84 inches / 2134 mm
Width:  24.3 inches / 617 mm
Depth: 22 inches / 559 mm
Weight:  350 lbs / 159 kg
Config: -48V
Cables/Shelf: 2
Breakers/Shelf: 1
Capacity Options: 900 Ah



For more information about NorthStar Battery Racks,
call 86 21 5859 8677 or email sales@alphaenertech.com.
